Slope of a Straight Line Calculator

Enter the coordinates of two points to get information about the line that passes through them (equations, y-intercept, angle of inclination, etc.), the step-by-step solution, and the graph.

Point 1
( , )
Point 2
( , )

Quick Examples

Rate this tool

Solved Exercises

Calculate the slope and elements of the line that passes through the points (-2, 3) and (4, 7).

Result

The line that passes through the given points has the following characteristics, equations, and elements.

Slope: \( m = \dfrac{2}{3} \approx 0.67 \)

Slope-intercept form: \( y = \dfrac{2}{3}x + \dfrac{13}{3} \)

Point-slope form: \( y - 3 = \dfrac{2}{3}\left(x + 2\right) \)

General form: \( 2x - 3y + 13 = 0 \)

y-intercept: \( b = \dfrac{13}{3} \approx 4.33 \)

Angle of inclination: \( \theta \approx 33.69^\circ \)

Vertical change: \( \Delta y = 4 \)

Horizontal change: \( \Delta x = 6 \)

Distance to the origin: \( d \approx 3.61 \)

Slope in percentage: \( m_{\%} \approx 66.67\% \)

Step-by-step solution

1. Calculate the slope (m).

We use the slope formula for two points in a plane, which is the division between the vertical change (Δy) and the horizontal change (Δx):

$$ m = \dfrac{\Delta y}{\Delta x} = \dfrac{y_2 - y_1}{x_2 - x_1} $$

We substitute the coordinates of \( P_1(-2, 3) \), \( P_2(4, 7) \):

$$ m = \dfrac{7 - 3}{4 - \left(-2\right)} = \dfrac{4}{6} = \dfrac{2}{3} $$

2. Calculate the angle of inclination (θ).

The angle of inclination is obtained by applying the arctangent function to the calculated slope:

$$ \theta = \arctan(m) = \arctan\left(\dfrac{2}{3}\right) \approx 33.69^\circ $$

3. Find the y-intercept (b) and the equations of the line.

We start from the point-slope equation using the coordinates of P₁ (the result would be the same using P₂):

$$ y - y_1 = m(x - x_1) $$
$$ y - 3 = \dfrac{2}{3}\left(x - \left(-2\right)\right) $$
$$ y - 3 = \dfrac{2}{3}\left(x + 2\right) $$

We solve for the variable 'y' and expand to get the equation in slope-intercept form (y = mx + b):

$$ y = \dfrac{2}{3}x + \dfrac{13}{3} $$

From this equation we extract that the y-intercept is \( b = \dfrac{13}{3} \).

Starting from the slope-intercept form, we rearrange the terms to equal zero in the general form Ax + By + C = 0:

$$ 2x - 3y + 13 = 0 $$

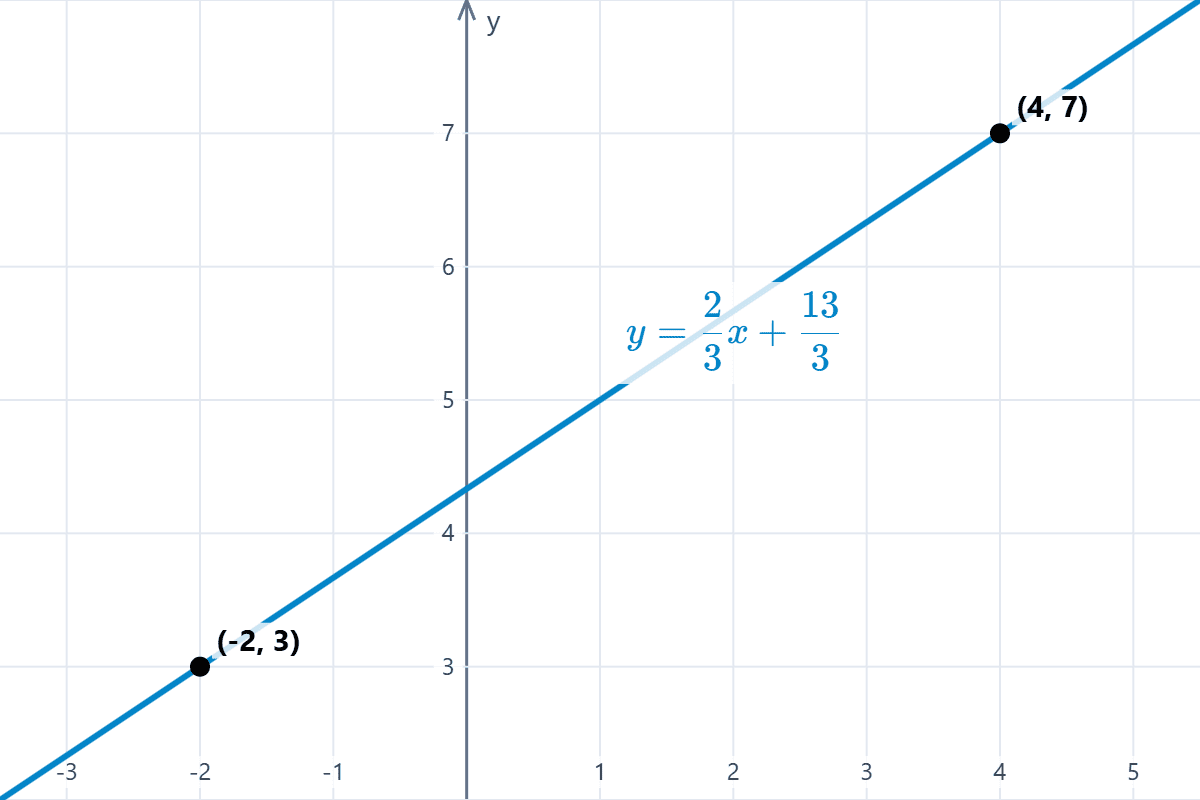

Graph on the Cartesian plane of a line with a positive slope obtained from two points.
Graph of the line
Find the slope of the straight line where (1, 5) and (6, -2) are two of its points.

Answer

Slope: \( m = -\dfrac{7}{5} = -1.4 \)

Slope-intercept form: \( y = -\dfrac{7}{5}x + \dfrac{32}{5} \)

Point-slope form: \( y - 5 = -\dfrac{7}{5}\left(x - 1\right) \)

General form: \( 7x + 5y - 32 = 0 \)

y-intercept: \( b = \dfrac{32}{5} = 6.4 \)

Angle of inclination: \( \theta \approx 125.54^\circ \)

Vertical change: \( \Delta y = -7 \)

Horizontal change: \( \Delta x = 5 \)

Distance to the origin: \( d \approx 3.72 \)

Slope in percentage: \( m_{\%} \approx -140\% \)

Step-by-step solution

1. Calculate the slope (m).

We use the slope formula for two points in a plane, which is the division between the vertical change (Δy) and the horizontal change (Δx):

$$ m = \dfrac{\Delta y}{\Delta x} = \dfrac{y_2 - y_1}{x_2 - x_1} $$

We substitute the coordinates of \( P_1(1, 5) \), \( P_2(6, -2) \):

$$ m = \dfrac{-2 - 5}{6 - 1} = \dfrac{-7}{5} = -\dfrac{7}{5} $$

2. Calculate the angle of inclination (θ).

The angle of inclination is obtained by applying the arctangent function to the calculated slope:

$$ \theta = \arctan(m) = \arctan\left(-\dfrac{7}{5}\right) \approx -54.46^\circ $$

Since the slope is negative, the arctangent function returns a negative angle (measured clockwise). By geometric convention, the angle of inclination of a line is always expressed as a positive value between 0° and 180°.

To get the standard angle of inclination, we add 180° to the arctangent:

$$ \theta = \arctan\left(-\dfrac{7}{5}\right) + 180^\circ \approx 125.54^\circ $$

3. Find the y-intercept (b) and the equations of the line.

We start from the point-slope equation using the coordinates of P₁ (the result would be the same using P₂):

$$ y - y_1 = m(x - x_1) $$
$$ y - 5 = -\dfrac{7}{5}\left(x - 1\right) $$

We solve for the variable 'y' and expand to get the equation in slope-intercept form (y = mx + b):

$$ y = -\dfrac{7}{5}x + \dfrac{32}{5} $$

From this equation we extract that the y-intercept is \( b = \dfrac{32}{5} \).

Starting from the slope-intercept form, we rearrange the terms to equal zero in the general form Ax + By + C = 0:

$$ 7x + 5y - 32 = 0 $$

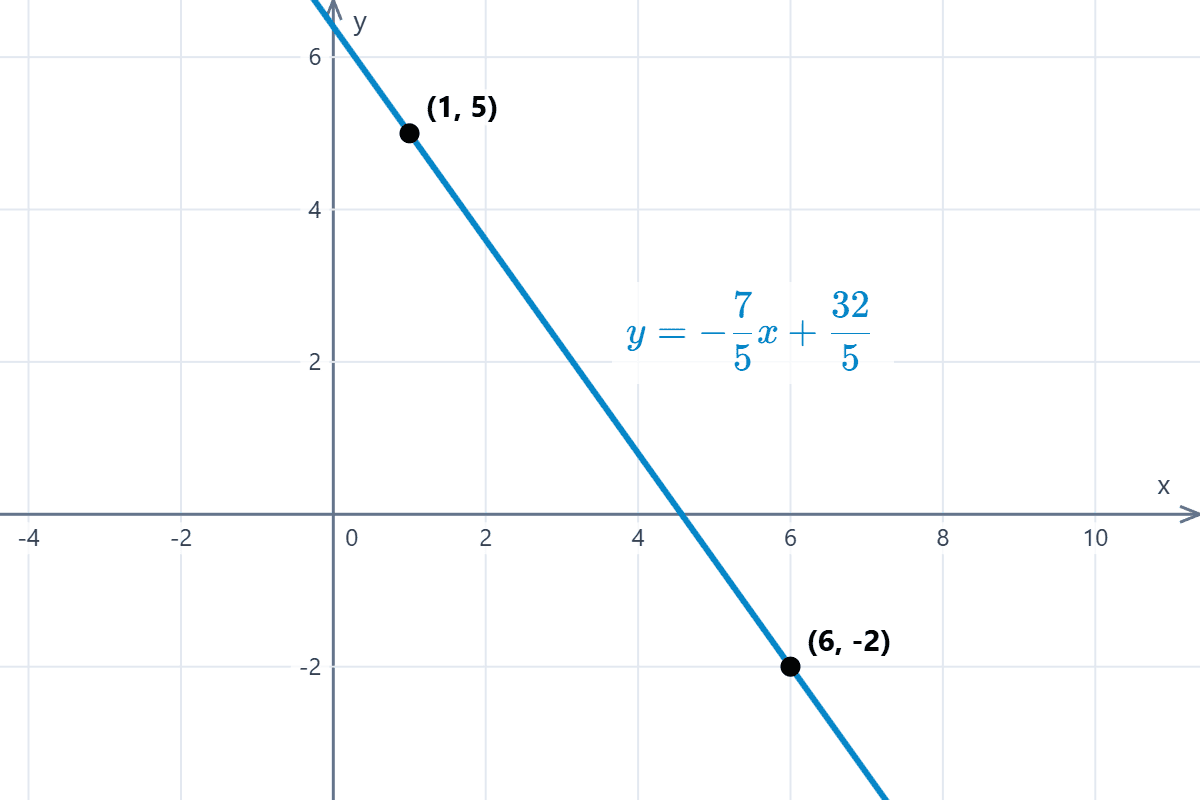

Graph on the Cartesian plane of a line with a negative slope obtained from two points.
Graph of the line
Determine the slope of the line given the points (-2, -2) and (3, 2).

Solution

Slope: \( m = \dfrac{4}{5} = 0.8 \)

Slope-intercept form: \( y = \dfrac{4}{5}x - \dfrac{2}{5} \)

Point-slope form: \( y + 2 = \dfrac{4}{5}\left(x + 2\right) \)

General form: \( 4x - 5y - 2 = 0 \)

y-intercept: \( b = -\dfrac{2}{5} = -0.4 \)

Angle of inclination: \( \theta \approx 38.66^\circ \)

Vertical change: \( \Delta y = 4 \)

Horizontal change: \( \Delta x = 5 \)

Distance to the origin: \( d \approx 0.31 \)

Slope in percentage: \( m_{\%} \approx 80\% \)

Step-by-step solution

1. Calculate the slope (m).

We use the slope formula for two points in a plane, which is the division between the vertical change (Δy) and the horizontal change (Δx):

$$ m = \dfrac{\Delta y}{\Delta x} = \dfrac{y_2 - y_1}{x_2 - x_1} $$

We substitute the coordinates of \( P_1(-2, -2) \), \( P_2(3, 2) \):

$$ m = \dfrac{2 - \left(-2\right)}{3 - \left(-2\right)} = \dfrac{4}{5} $$

2. Calculate the angle of inclination (θ).

The angle of inclination is obtained by applying the arctangent function to the calculated slope:

$$ \theta = \arctan(m) = \arctan\left(\dfrac{4}{5}\right) \approx 38.66^\circ $$

3. Find the y-intercept (b) and the equations of the line.

We start from the point-slope equation using the coordinates of P₁ (the result would be the same using P₂):

$$ y - y_1 = m(x - x_1) $$
$$ y - \left(-2\right) = \dfrac{4}{5}\left(x - \left(-2\right)\right) $$
$$ y + 2 = \dfrac{4}{5}\left(x + 2\right) $$

We solve for the variable 'y' and expand to get the equation in slope-intercept form (y = mx + b):

$$ y = \dfrac{4}{5}x - \dfrac{2}{5} $$

From this equation we extract that the y-intercept is \( b = -\dfrac{2}{5} \).

Starting from the slope-intercept form, we rearrange the terms to equal zero in the general form Ax + By + C = 0:

$$ 4x - 5y - 2 = 0 $$

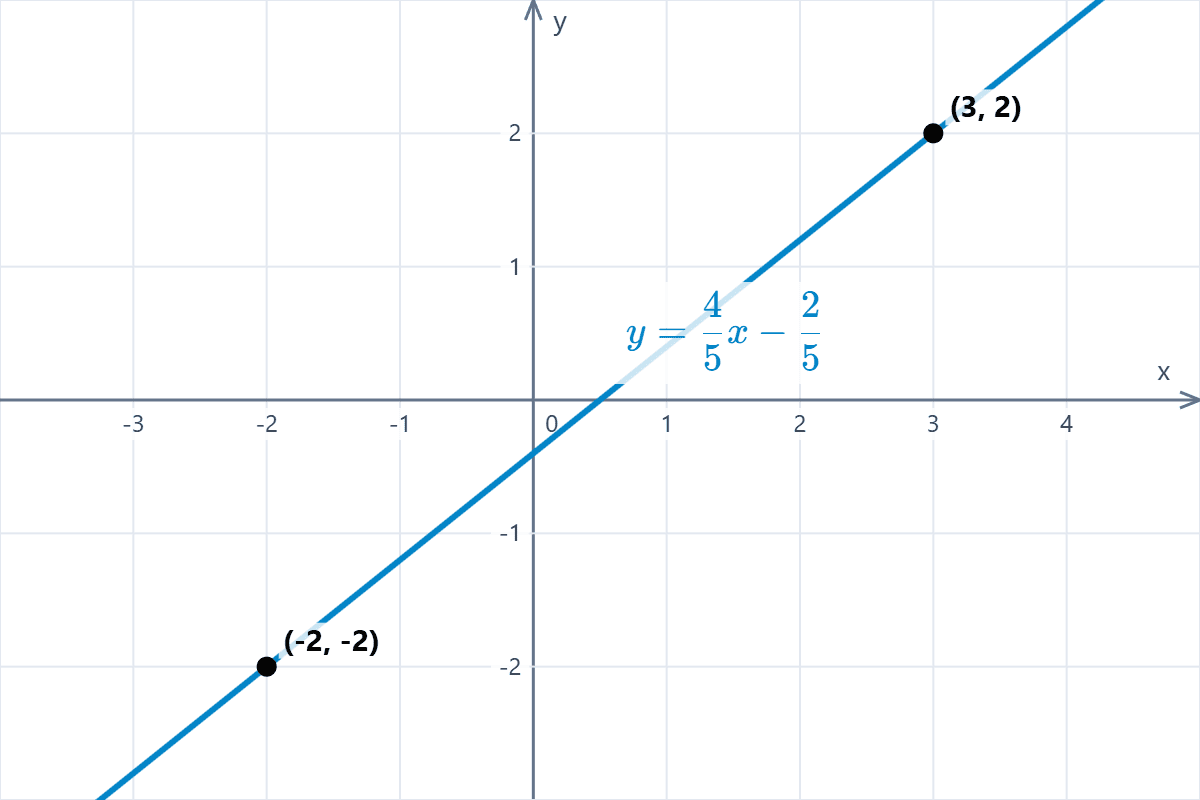

Graph on the Cartesian plane of a line with a positive slope obtained from two points with integer coordinates.
Graph of the line on the plane
Obtain the elements of the straight line containing the points (-1/2, 3/4) and (5/2, -1/4).

Result

Slope: \( m = -\dfrac{1}{3} \approx -0.33 \)

Slope-intercept form: \( y = -\dfrac{1}{3}x + \dfrac{7}{12} \)

Point-slope form: \( y - \dfrac{3}{4} = -\dfrac{1}{3}\left(x + \dfrac{1}{2}\right) \)

General form: \( 4x + 12y - 7 = 0 \)

y-intercept: \( b = \dfrac{7}{12} \approx 0.58 \)

Angle of inclination: \( \theta \approx 161.57^\circ \)

Vertical change: \( \Delta y = -1 \)

Horizontal change: \( \Delta x = 3 \)

Distance to the origin: \( d \approx 0.55 \)

Slope in percentage: \( m_{\%} \approx -33.33\% \)

Step-by-step solution

1. Calculate the slope (m).

We use the slope formula for two points in a plane, which is the division between the vertical change (Δy) and the horizontal change (Δx):

$$ m = \dfrac{\Delta y}{\Delta x} = \dfrac{y_2 - y_1}{x_2 - x_1} $$

We substitute the coordinates of \( P_1(-\dfrac{1}{2}, \dfrac{3}{4}) \), \( P_2(\dfrac{5}{2}, -\dfrac{1}{4}) \):

$$ m = \dfrac{-\dfrac{1}{4} - \dfrac{3}{4}}{\dfrac{5}{2} - \left(-\dfrac{1}{2}\right)} = \dfrac{-1}{3} = -\dfrac{1}{3} $$

2. Calculate the angle of inclination (θ).

The angle of inclination is obtained by applying the arctangent function to the calculated slope:

$$ \theta = \arctan(m) = \arctan\left(-\dfrac{1}{3}\right) \approx -18.43^\circ $$

Since the slope is negative, the arctangent function returns a negative angle (measured clockwise). By geometric convention, the angle of inclination of a line is always expressed as a positive value between 0° and 180°.

To get the standard angle of inclination, we add 180° to the arctangent:

$$ \theta = \arctan\left(-\dfrac{1}{3}\right) + 180^\circ \approx 161.57^\circ $$

3. Find the y-intercept (b) and the equations of the line.

We start from the point-slope equation using the coordinates of P₁ (the result would be the same using P₂):

$$ y - y_1 = m(x - x_1) $$
$$ y - \dfrac{3}{4} = -\dfrac{1}{3}\left(x - \left(-\dfrac{1}{2}\right)\right) $$
$$ y - \dfrac{3}{4} = -\dfrac{1}{3}\left(x + \dfrac{1}{2}\right) $$

We solve for the variable 'y' and expand to get the equation in slope-intercept form (y = mx + b):

$$ y = -\dfrac{1}{3}x + \dfrac{7}{12} $$

From this equation we extract that the y-intercept is \( b = \dfrac{7}{12} \).

Starting from the slope-intercept form, we rearrange the terms to equal zero in the general form Ax + By + C = 0:

$$ 4x + 12y - 7 = 0 $$

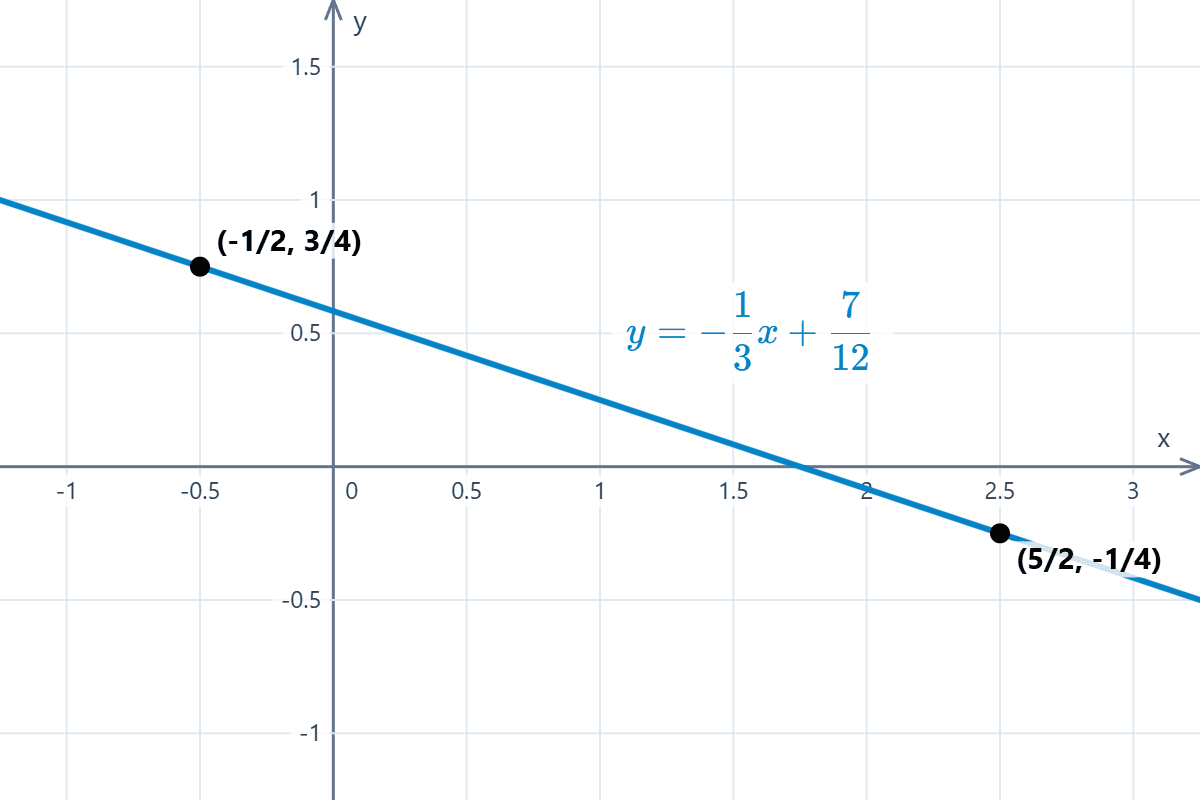

Graph on the Cartesian plane of a line with a negative slope obtained from two points with fractional coordinates.
Graph of the line on the plane
